Paxton net 2 door controller

Paxton Net 2 Door Controller

Paxton Net 2 Door Controller

We are one of the UK’s leading providers for Paxton

Request a quote
Paxton Net 2 door controller

Paxton Net 2 Door Controller

Flexible, reliable door control for Paxton’s Net 2 door controller access system.
The Paxton Net 2 Door Controller provides a simple way to manage who can enter your building, and when. Designed to work seamlessly with the Net2 software, it offers full visibility of events, secure door control, and easy integration with other building systems.

Why choose the Paxton Net 2 Door Controller?

  • Scalable solution  – Add multiple controllers to your Net2 network, supporting small sites with a few doors right through to enterprise-level systems with hundreds of access points.

  • Secure by design – Controllers store their own access permissions, meaning doors stay secure even if the network connection is lost.

  • Flexible connectivity – Options available for TCP/IP, RS485, or wireless Net2Air communication.

  • User-friendly management  – Administrators can set schedules, permissions, and zones via the intuitive Net2 software.

  • Seamless integration – Works with readers, keypads, and door hardware to provide a complete access control solution.

  • Failsafe operation – Onboard backup battery options (depending on model) ensure continued operation during power interruptions.

How it works

  1. A credential (card, fob, or PIN) is presented at the reader.

  2. The reader sends the data to the Net2 Controller.

  3. The controller checks permissions stored locally.

  4. If access is granted, the controller triggers the door lock relay to open.

  5. All events are logged centrally in the Net2 software for reporting and monitoring.

Controller models

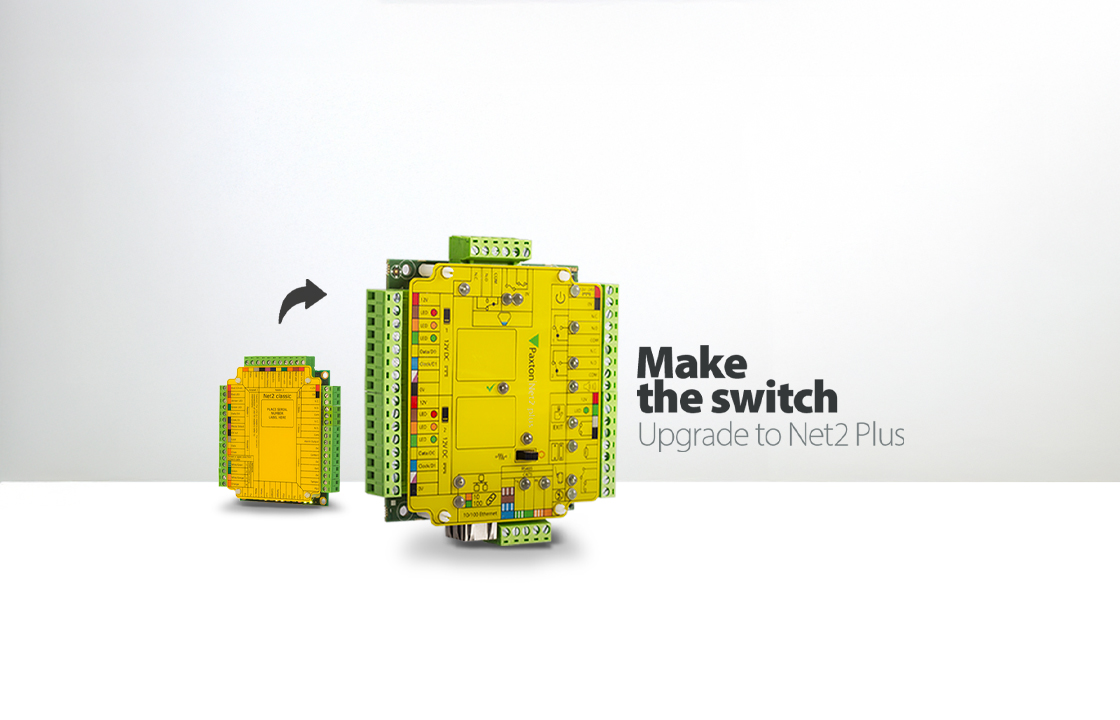

  • Net2 Plus – The most advanced version, featuring built-in TCP/IP connectivity, RS485 capability, and support for PoE. Ideal for larger or networked sites.

  • Net2 Classic – A reliable, cost-effective controller connected via RS485. Suitable for smaller or simpler installations.

  • Net2 Nano – A wireless controller communicating via Net2Air. Perfect for locations where wiring is difficult or disruptive.

Key features (summary)

  • Controls one door, two readers (in/out).

  • Choice of connection: TCP/IP, RS485, or wireless (model dependent).

  • Local database for offline operation.

  • Relay outputs for locks, alarms, or auxiliary functions.

  • Dedicated inputs for Request-to-Exit and door contact monitoring.

  • Integrates with Paxton’s full range of Net2 readers and keypads.

  • Expandable to hundreds of doors on a single system.

Paxton Net 2 door controller
Paxton Net 2 door controller
Paxton Net 2 door controller

FAQ’s

Technical overview

  • Doors per controller: 1

  • Readers supported: 2 (entry/exit)

  • Connectivity: TCP/IP, RS485, Net2Air wireless (depending on model)

  • Relay outputs: 1 lock relay, 1 auxiliary

  • Inputs: Request-to-Exit, door contact

  • Power: 12V DC supply; Net2 Plus supports PoE (Power over Ethernet)

  • Operating temperature: 0 – 45 °C typical

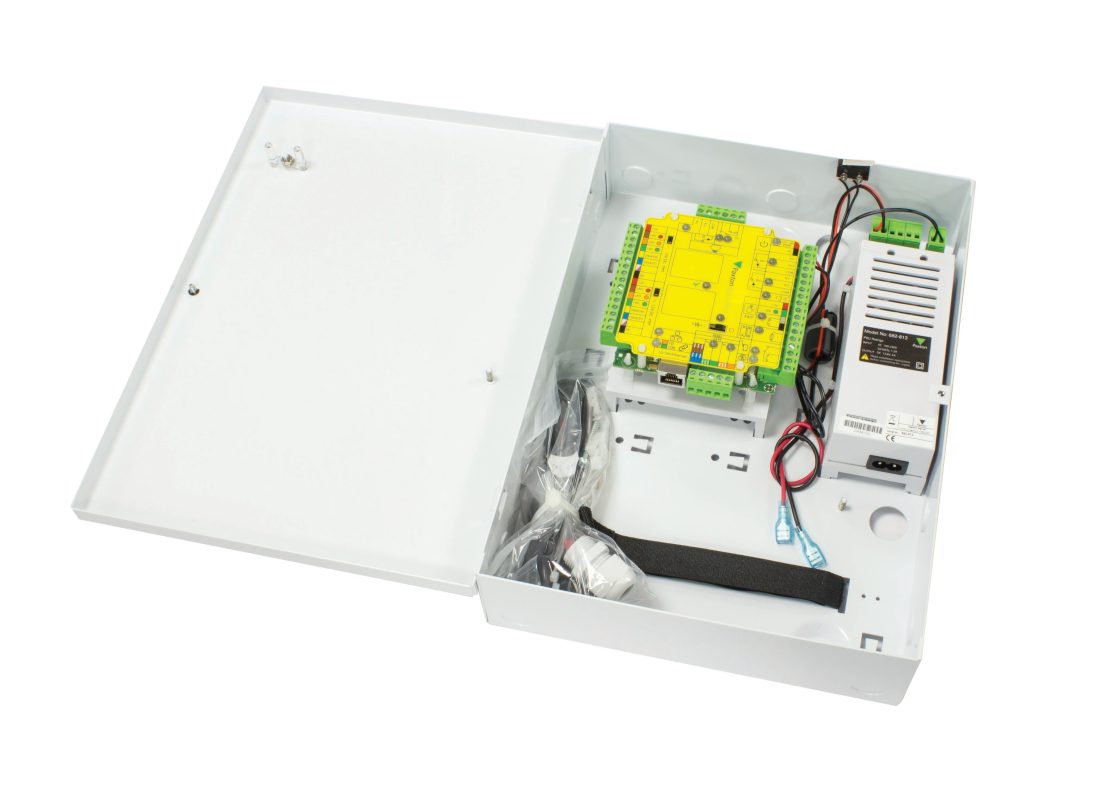

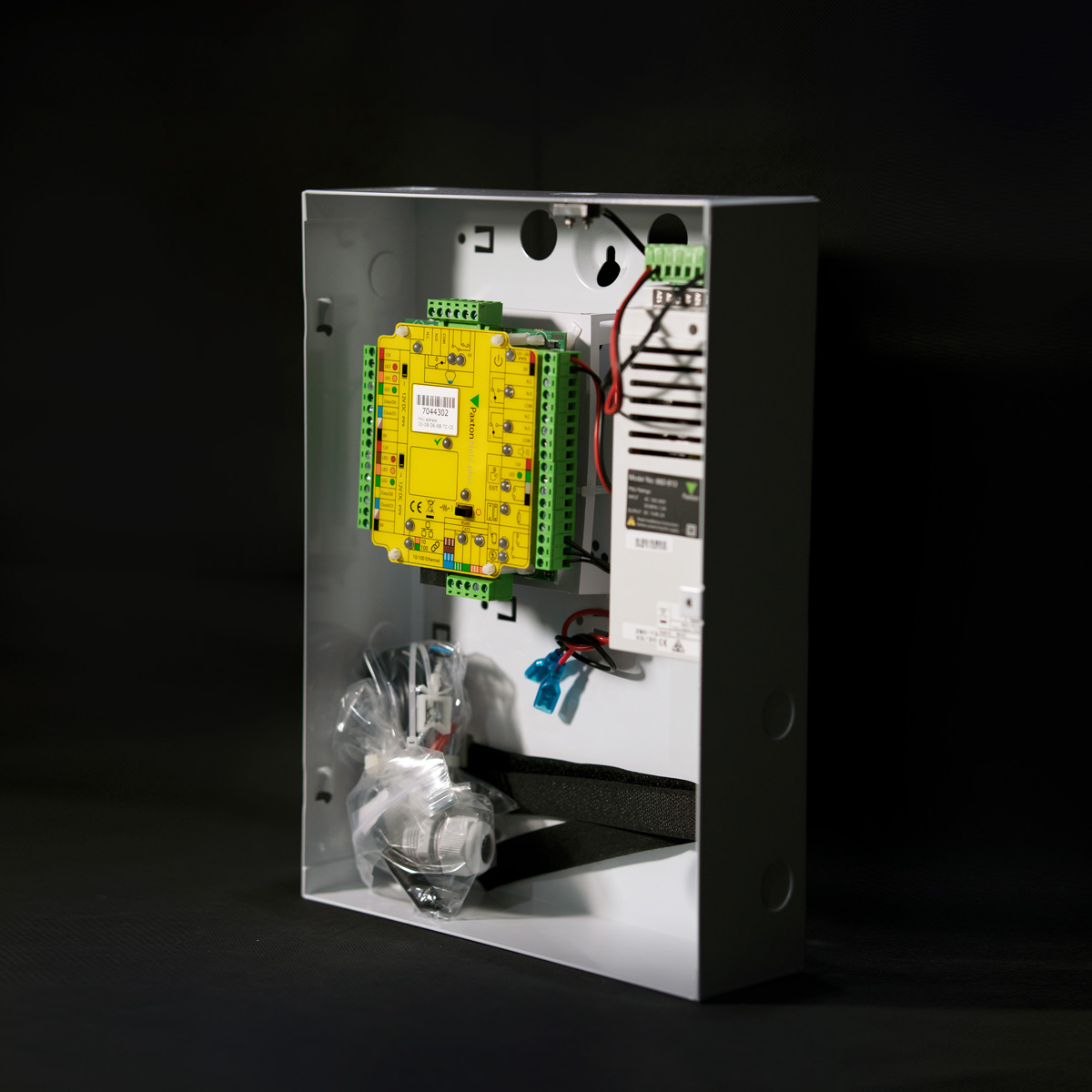

  • Enclosure: Controllers supplied as PCB only or in plastic/metal cases with integral power supply

Why integrators choose Paxton

  • Free, easy-to-use Net2 software for managing credentials, schedules, and reporting.

  • Lifetime technical support and 5-year guarantee.

  • Wide range of compatible readers, keypads, and accessories.

  • Trusted by installers worldwide for secure, scalable, and cost-effective access control.

.

Technical Data
